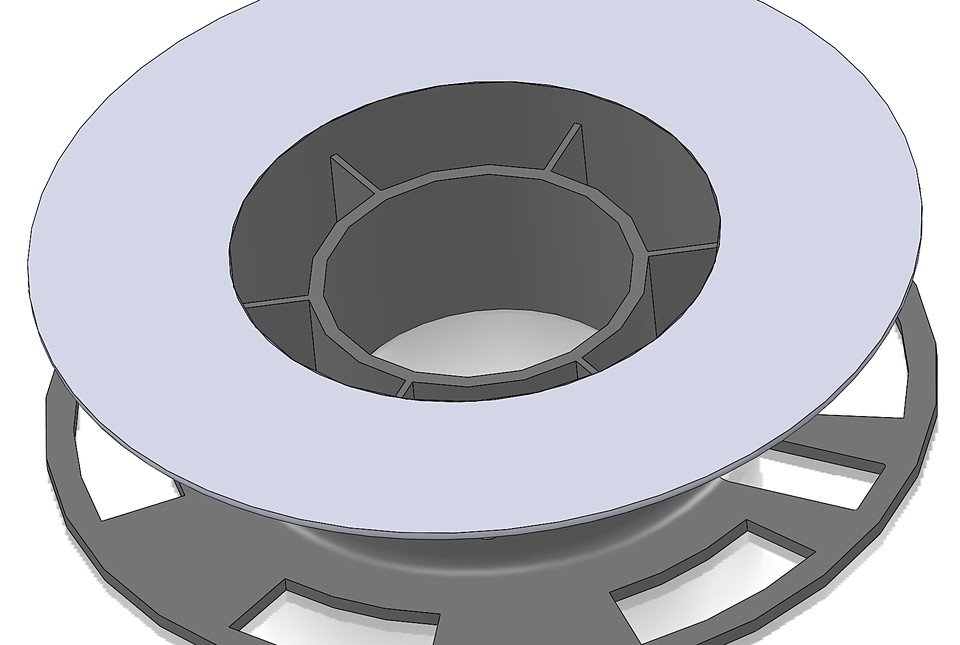

File: Reel Assy.STL Name: Small Makerbot Reel Assembly Material: 134.82 grams ( 0.297 lbs) Size: 308 mm (12.1") x 152 mm (6") x 38 mm (1.5") Resolution: 0.20mm Layers: 196 layers Rafts: Yes Supports: No Print Time: 11 hr 33 min Function: There are a lot of "reel simulators" with hubs and fingers but I wanted a "real reel". If you break the reel into a hub with one side flange and then simply the other flange and glue the two parts together you will have a "real reel". Of course there are alignment features on the simple flange to align to the hub. The hub is sized for the Makerbot Mini and Fifith Generation printers. The hub has a view window to see how much filament is used, an embossed arrow to show the filament pull off direction, and holes to attach the end of the filament. I had to print the hub and flange separately due to the size of my build platform. The center diameter is 2.09" (53.1mm) so if you print this half scale it will fit a 1" hub perfectly some of the DIY 3D printers.
