Detail2Body – Fusion 360 Add-in

Extract Surface Details as Separate Bodies

Detail2Body is a powerful Fusion 360 add-in that extracts surface details from solid bodies and converts them into separate Joiner and Cutter bodies. Perfect for kit-bashing, 3D printing, and design reuse.

What Does It Do?

When you apply features like fillets, chamfers, or holes to a solid body, they become part of that body. Detail2Body reverses this process:

• Joiners — Extracted bodies representing added material
• Cutters — Extracted bodies representing removed material
• Sub-Bodies — Copy related bodies that are not combined with the source

Build Once, Use Everywhere!

Demo Version

• Select Source Body
• Selection Type (Features / Faces)
• Select Details

Full Version

Everything in Demo, plus:

• Detail Sub-Bodies
• Operation (New Body / New Component)
• Component Location (Source / Active / Root)
• Select Outputs
• Create Selection Sets
• Auto-Open Tools (Move/Copy, Scale, Move to Group)
• Custom Naming Prefixes
• Custom Colors for Joiners, Cutters, and Sub-Bodies
• More options for selections
• Auto-save settings and Reset to Default option

Key Features

Two Selection Modes

• Feature Mode — Select entire features from the timeline, fast and automatic
• Face Mode — Select individual faces manually for precise control

Smart Output Options

• Create as New Body or New Component
• Automatic color coding for easy identification
• Generate Selection Sets for quick re-selection
• Custom naming prefixes (Source Body, Component, File, Project, or Custom)

Workflow Integration

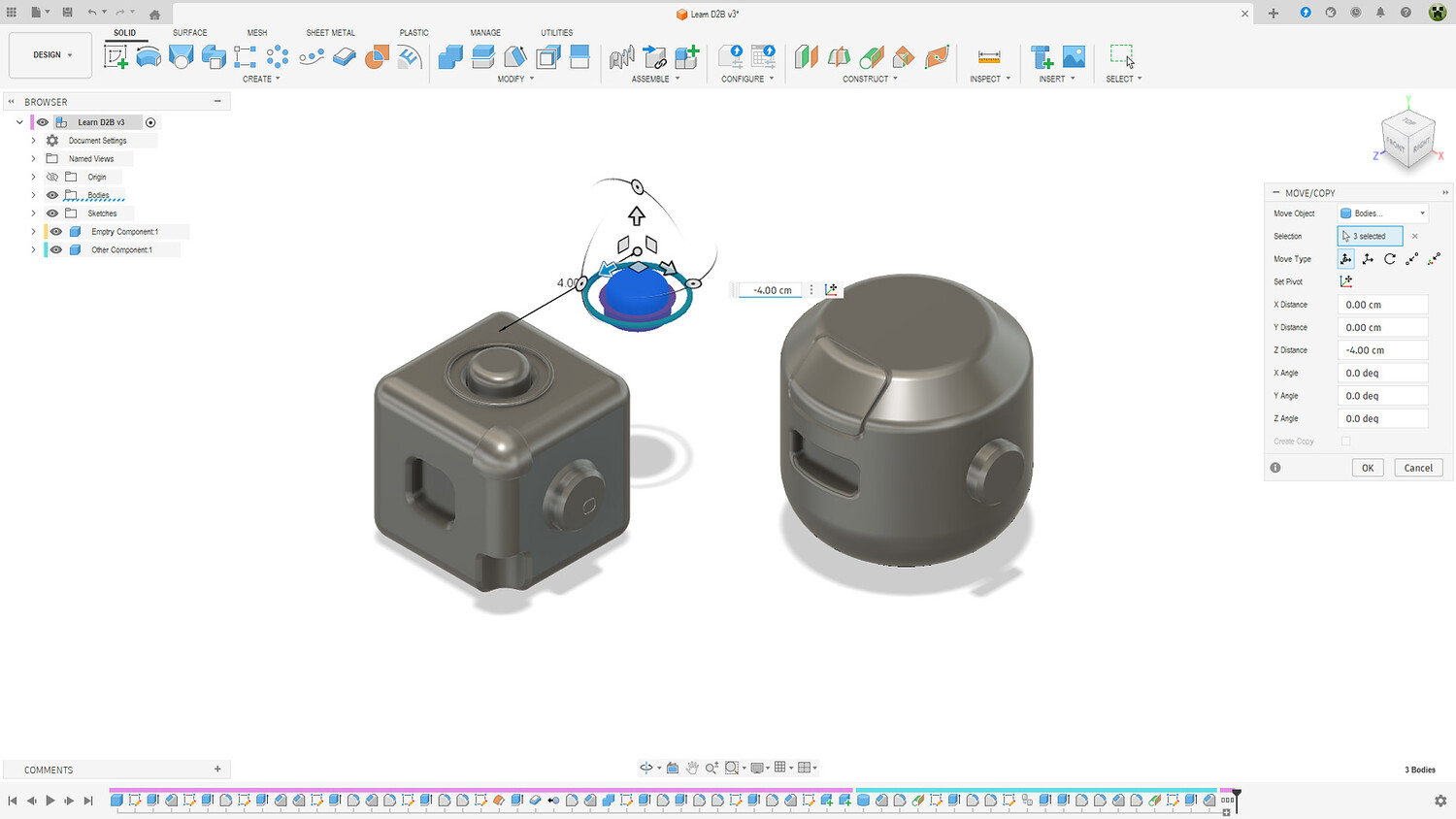

• Auto-open tools after completion
• Works in both Parametric and Direct Modeling modes
• Timeline grouping for clean history
• All settings auto-saved between sessions

Full Customization

• Custom names for Joiners, Cutters, and Sub-Bodies
• Multiple color options for each body type
• Component location control (Source, Active, or Root)
• Result notifications with detailed summary

How to Use

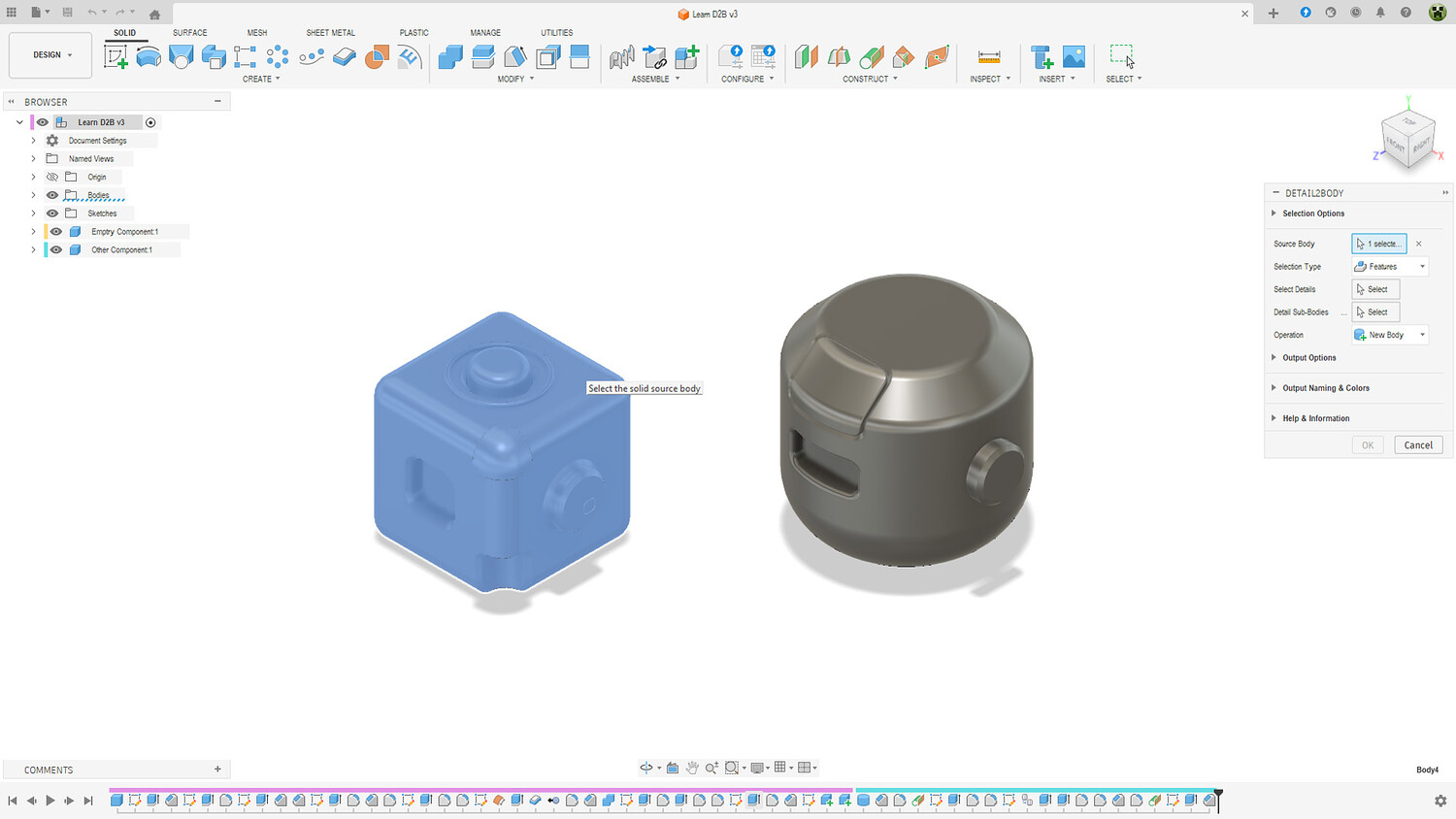

1. Select Source Body
2. Choose Selection Type (Features or Faces)

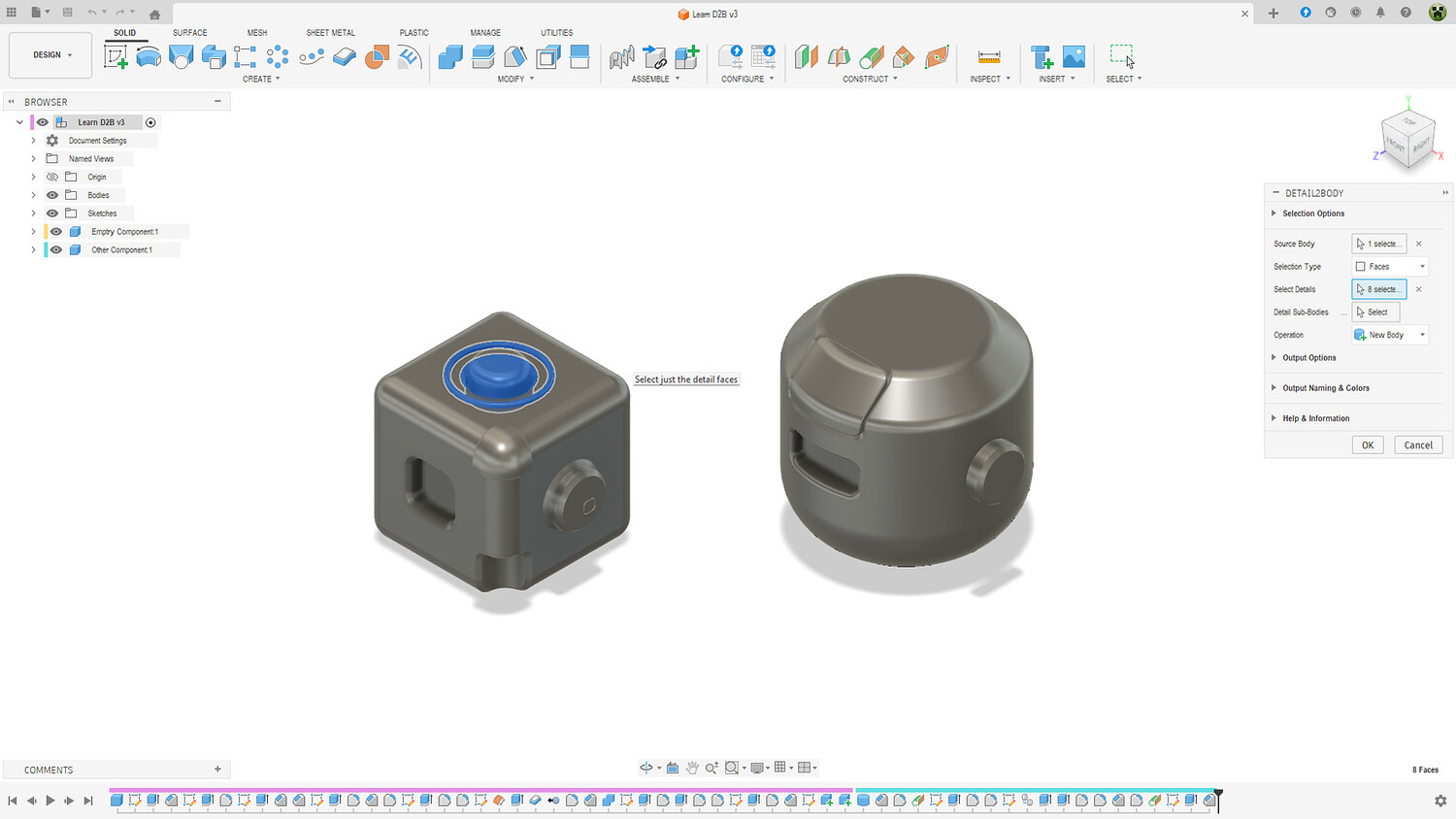

3. Select Details

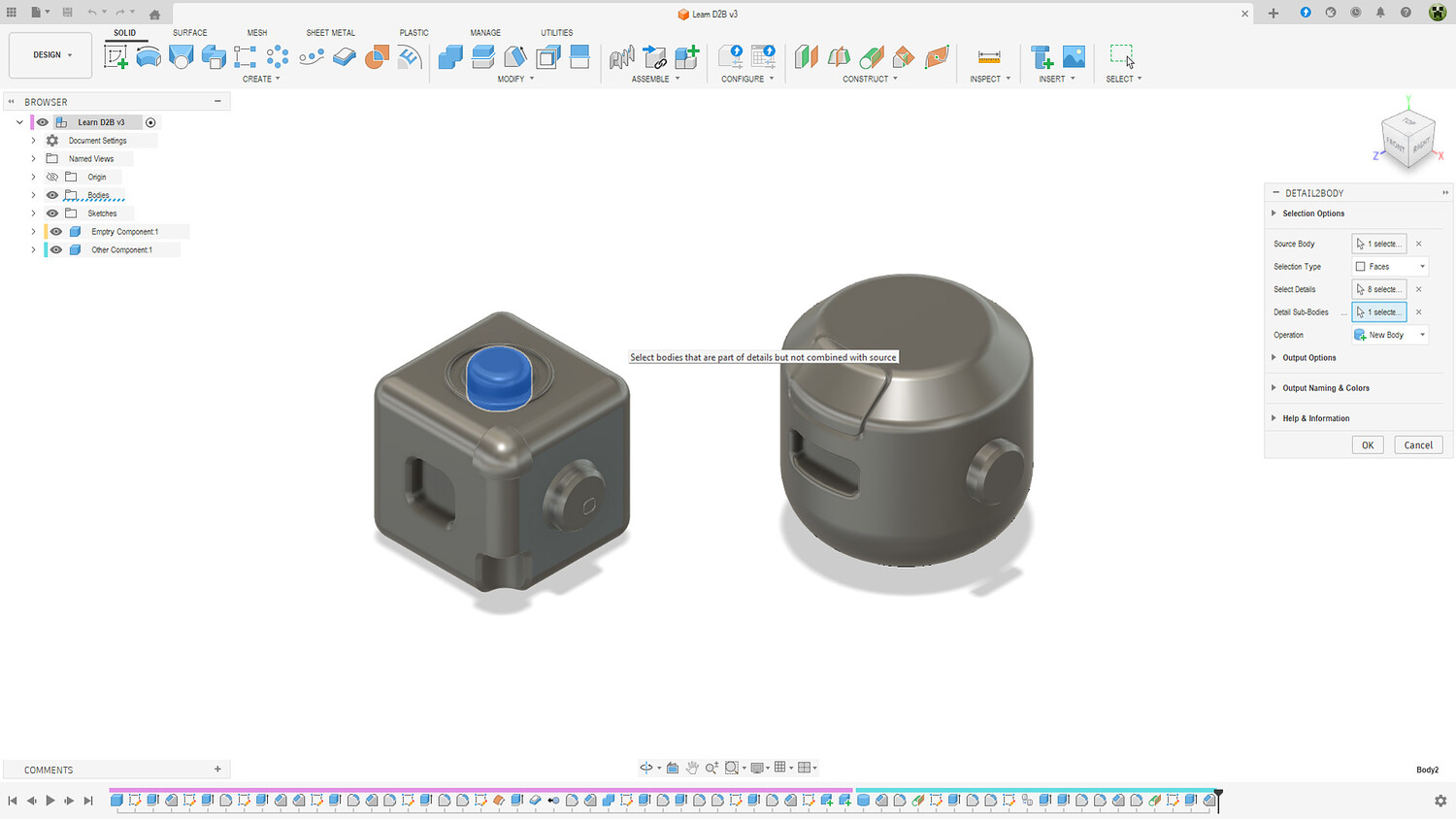

4. Optional: Add Sub-Bodies
5. Click OK — Your Joiners and Cutters are ready

Perfect For

• Kit-bashing
• 3D Printing
• Design Reuse
• Reverse Engineering

What's Included

• Detail2Body Add-in files
• Ready to install and use

Requirements

• Autodesk Fusion 360 (Personal, Educational, or Commercial license)
• Windows or macOS

Coming from Other Software?

From CAD Software (SolidWorks, CATIA, Inventor, etc.)

• Import your model as STEP, IGES, or SAT
• Your solid body is ready to use with Detail2Body

From 3D Software (Blender, 3ds Max, Maya, etc.)

• Import your mesh as OBJ or STL
• Convert Mesh Body to Solid Body first
• Then use Detail2Body on the converted solid

Support

For questions or support, please contact me via the marketplace messaging system or email: [email protected]

Free Demo Coming soon on the official Autodesk App Store.

Thank you for your purchase!
